Ribbed washers

SMARTLOCK ribbed washers

Small washers, big impact

The ribbed washer from our W.TEC® product series combines simplicity with technical sophistication. Its one-piece locking system secures your screw connection against self-loosening.

Junker test in accordance with DIN 65151 and DIN 25201-4

An independent institute confirmed the locking effect of all dimensions by conducting a Junker test in accordance with DIN 65151 and DIN 25201-4.

Following the test, the screw connection retained a minimum of 80% of its preload force.

Junker test for ribbed washers

  • Locking method: Anti-rotation lock
  • Material: Steel
  • Plating: Zinc flake

Advantages:

  • Excellent locking effect
  • Surface-friendly
  • Easy assembly and disassembly
  • Reusable
  • For use up to strength class 12.9
  • Low space requirement
Ribbed washers for the industry
Ribbed washers

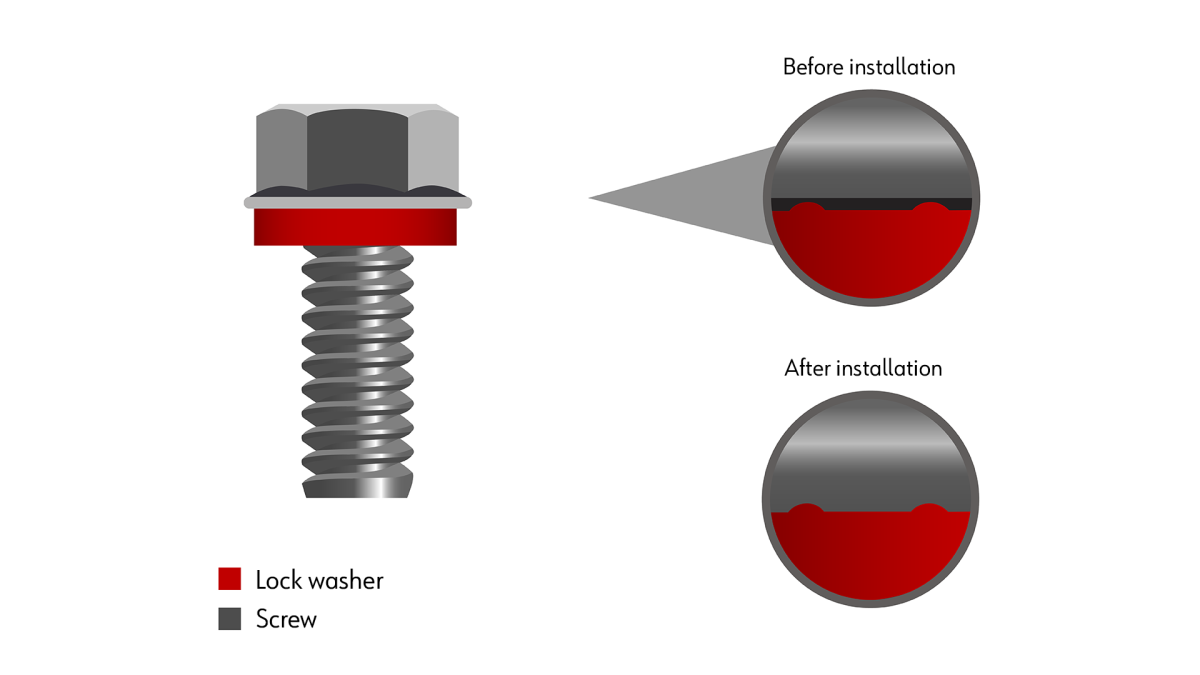

How do ribbed washers work?

Due to the preload applied during assembly, the radial ribs of the ribbed washer press into the mating material.

This process results in a form-fit connection of the respective contact surfaces. This form fit connection ensures reliable locking against loosening even under strong dynamic influences and vibrations.

At a glance. Our flyer - W.TEC®SMARTLOCK



Where are ribbed washers used?

Mechanical engineering

Mechanical engineering and construction

Cargo and agricultural machinery

Cargo and agricultural mechanical engineering

Our in-house product series W.TEC® represents our carefully curated selection of products that stand out due to their excellent functionality and top class quality. Each product has been developed with the highest quality standards in order to meet the requirements of the industrial customers. This combination of precision and performance makes the products of our W.TEC® series price and performance champions.​

More about the W.TEC® product series
